Payload, ATM and tare: reading an Australian trailer plate
ATM, GTM and tare are not workshop slang. They are the legal mass story on the plate, and payload is whatever is left after you subtract a trailer you have actually weighed.
By Sam Keating · 12 August 2024 · Updated 2 March 2025 · 7 min read · 1,484 words
A Victorian farm gate, late autumn, frost still on the grass along the fence line. The agent has sent a truck for fence posts and a small excavator bucket that "won't be any trouble on that tandem." The plate is on the drawbar, under mud: ATM 2,000 kg, tare 780 kg. The farmer is sure there is "a tonne and a bit" of payload. The public weighbridge, an hour later, puts the unladen trailer at 940 kg. The floor was rebuilt in steel three winters ago. The toolbox was a Christmas present. Payload was 1,060 kg the day the plate was stamped. It is 1,060 kg minus 160 kg of extras now.
Australian trailer plates are not workshop slang. They are the legal mass story. Inspectors do not care what the trailer "feels like" behind a 200 Series. They care about ATM, GTM, tare, and the ratings on the vehicle and the towbar. Payload is a remainder, and remainders shrink.
The regulations hub is the wider map. This piece is the plate in your hand.
What each number on the plate is for
A proper Australian trailer identification plate should let you read, without a phone call to the builder, at least the following.
ATM — Aggregate Trailer Mass. The maximum mass of the trailer including its load and the downward force on the coupling. This is the headline number, and it must sit at or below the lowest rating in the towing chain.
GTM — Gross Trailer Mass. The maximum mass on the trailer axle or axles when the trailer is coupled and loaded to the manufacturer's maximum. GTM is ATM minus ball mass. If ATM is 2,000 kg and the coupling is taking 200 kg, GTM cannot exceed 1,800 kg. Axle and tyre ratings must cover GTM.
Tare. The unladen mass the manufacturer declared. Tare on an old plate is a historical fact. It is not a promise the trailer still weighs that after a chequer-plate floor and a generator.
Axle ratings, tyres and rims. These must be consistent with GTM. A pair of light-truck tyres that cannot support the axle rating is a booking waiting for a hot day on the Newell.
Manufacturer and identifier. Who built it, and the number that ties the plate to the trailer. A missing or moved plate is a registration problem. State agencies are not sentimental about "it came off a mate's other one."
You will also see brake type, coupling type, and sometimes a date. Treat missing fields as a reason to slow down.
| Term | What it limits | Common confusion |
|---|---|---|
| ATM | Whole trailer plus load, including ball mass | People treat it as "what the axles can take" |
| GTM | Mass on the trailer axle(s) when coupled | People use it interchangeably with ATM |
| Tare | Empty trailer as declared, or as weighed now | People forget extras added after the plate |
| Payload | ATM minus current tare | People subtract the original tare from a heavier trailer |
| GVM | The tow vehicle, fully loaded | People add trailer ATM on top as if GVM had spare room |
Payload is ATM minus the trailer you have, not the trailer you bought
Do the arithmetic on paper.
- Read ATM.
- Weigh the trailer unladen, today, with water tanks empty unless those tanks are permanent and full in normal use — pick a method and stick to it.
- Subtract. That is payload.
- Subtract again for the things you always carry: ramps, chains, a second spare, a jerrycan, a toolbox whose contents have never been audited.
A boat trailer is the classic liar. The plate assumes a dry hull. The ramp gives you a hull full of water, a wet carpet, and a skipper who has not pulled the bung. A plant trailer lies in the other direction: the excavator is the mass you planned for, the steel trench plates you threw on "just in case" are not.
If you are specifying a new trailer rather than reading an old plate, lock ATM from the tow vehicle downward and let tare fall out of the design. That is the order in how to specify a custom trailer for Australian conditions. Builders who start with a deck size and "see what it weighs" are designing the over-mass ticket first.
Field note from a Victorian weighbridge: weigh the combination, then the vehicle, then do the subtraction in the car park before you argue with anyone. Memory is not a scale.
GVM, GCM and tow ratings are a different plate
The trailer plate does not know about your ute. Your ute has its own numbers, and they are the ones that catch people who did the trailer arithmetic correctly.
GVM is the maximum the tow vehicle can weigh, including passengers, fuel, canopy, toolbox and ball mass. A 200 kg download on a ute already near GVM is a vehicle problem, not a trailer problem.
GCM is the maximum the vehicle and trailer can weigh together. GCM minus the vehicle as loaded is the mass left for the trailer. That leftover is often smaller than the brochure tow rating. Dual-cabs are famous for this: the handbook says 3,500 kg braked, and GCM leaves 2,400 kg once the vehicle is full of people and diesel.

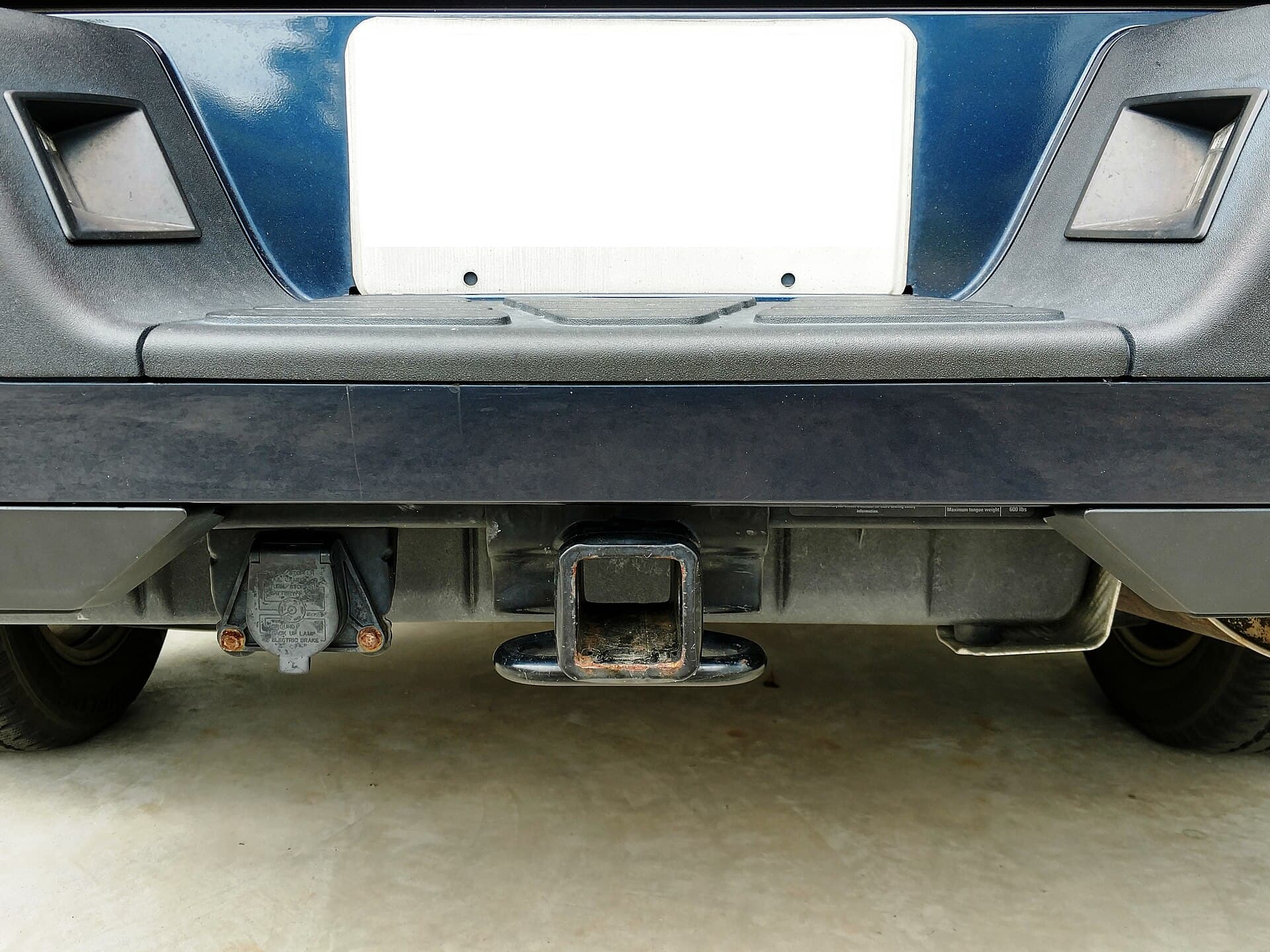

Towbar and coupling. The stamp on the bar, the ball, and the 50 mm coupling are independent ratings. The lowest is the law. Replacing a 2,500 kg bar with a 3,500 kg bar does not raise GCM.
The towing hub is the place for combination behaviour. For official wording, start with the Australian Design Rules and your state agency — VicRoads towing and trailers if you are on Victorian plates, or transport.sa.gov.au and transport.wa.gov.au if you are not.
How people actually get booked
The stories we hear from workshops and yards cluster.
The plate is honest and the load is not. Wet sand, a water tank filled "because we were going bush." ATM is a hard cap. There is no exemption for being almost there.
The plate is stale. Tare moved when the floor was replaced. The owner subtracted the old tare and called the difference payload. Inspectors subtract the trailer they weighed.
The trailer is legal and the combination is not. ATM 2,000 kg, tow rating 2,000 kg, GCM already spent on a canopy and three passengers. The trailer plate will not save you.
GTM, tyres and brakes. A tandem with one soft tyre and the load piled over that axle is an axle-group story. Breakaway and brake type sit against ATM, not against today's load. A 2,500 kg plate with tired magnets is a defect even with an empty deck. Mud on the plate is not a defence either.
Practise weighing until it is boring
Make weighing a habit, not a crisis.
- Use the same weighbridge when you can. Write the docket date on a photo of the plate.
- Weigh after a floor, toolbox, tank or ramp change. Those are tare events.
- Weigh a loaded typical job once, so you know what "a few posts and the bucket" actually is.
- Check ball mass with a gauge or the subtract-the-vehicle method. Too little ball mass makes the trailer wander. Too much steals GVM and lifts the front of a light tow vehicle.
If you are buying used, refuse to talk price until the trailer has been on a scale. That rule is in the new versus used checklist because it saves more arguments than any paint inspection.
Licence class can move when ATM and GVM stack. Do not take a pub figure. Check the current class limits with the agency that issued the licence — NSW driving and towing or your local equivalent.
What to do with a plate that does not match the trailer
You have three honest paths.
Live within the plate. Remove extras, reduce the load, and treat ATM as sacred. This is the cheap path and the one most owner-builders should take.
Re-rate through a proper process. An engineer and a state agency, not a mate with a stamp. This costs money and time. It is still cheaper than a defect and a court date.
Replace the trailer. If the chassis, axles and coupling cannot support the ATM you need, you do not have a paperwork problem. You have the wrong trailer. Budgeting a custom build is the next reading if that is where the numbers point.
Next step: photograph your plate this week, weigh the trailer empty, and write ATM, current tare and payload on a card in the glovebox. Believe the scale. Keep legislation.gov.au and the ADR index bookmarked, and use the buying hub when the plate has talked you into a different trailer.
Questions readers ask
- What is the difference between ATM and GTM?
- ATM is the maximum the trailer is allowed to weigh, including the load it puts on the tow vehicle through the coupling. GTM is the maximum mass on the trailer axle or axles when it is coupled and loaded. GTM is therefore ATM minus the downward load on the coupling. Both numbers belong on a proper plate.
- How do I calculate payload from the plate?
- Payload is ATM minus tare, using the tare of the trailer as it sits today. If you have added a floor, toolbox, water tank or ramps since the plate was stamped, the original tare is history. Weigh the unladen trailer, subtract that figure from ATM, and treat the remainder as your legal payload.
- Does my ute's 3,000 kg tow rating mean I can load a 3,000 kg ATM trailer to the plate?
- Only if the towbar, ball, coupling and GCM all agree, and only if the vehicle still has mass left after you, your fuel, canopy and passengers. The lowest rated part in the combination is the limit. Many dual-cabs run out of GCM before they run out of the brochure tow number.
- Where should I weigh a trailer in Australia?
- Use a public weighbridge and write down the method. Unladen tare should be taken with the jockey wheel up and the coupling supported so you are not mixing vehicle and trailer mass without meaning to. Weigh the combination, then the vehicle alone, if you need ball mass. Keep the docket.
